Safe Charging and Storage of Lithium-Ion Batteries

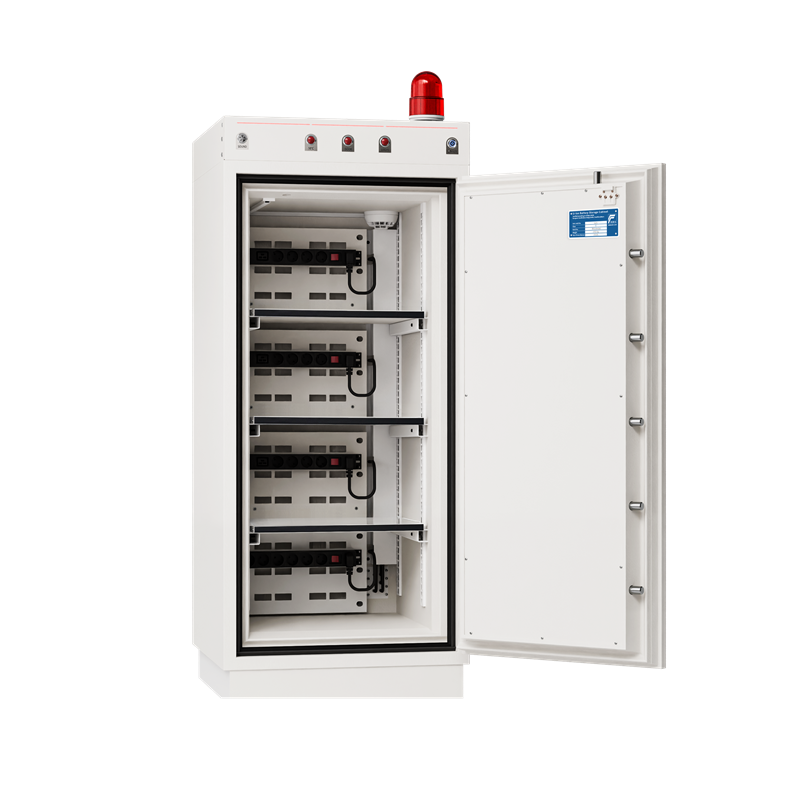

As the number of lithium-ion batteries increases, so do the safety requirements. Thermal runaway in a single battery can spread rapidly, leading to an explosive fire with toxic gases. The BLS1944E battery charging cabinet is designed to handle this scenario with fire-resistant shelves, automatic alarms, and a built-in emergency power-off to protect personnel and property.
Certified According to VDMA 24994 by ECB·S
CERTIFIED ACCORDING TO VDMA 24994 BY ECB·S
BLS1944E is one of the first cabinets in the world to be officially certified according to VDMA 24994 – the new European standard for the safe storage of lithium-ion batteries. Testing is performed by accredited laboratories under ECB·S supervision, ensuring independent and reliable verification of the protection level.
Advanced Safety Features
- Electronic Code Lock: Comes with a user-friendly electronic code lock with a digital display.
- Alarms & Emergency Power-Off: Built-in smoke and heat detectors monitor the cabinet. A 50°C alarm is activated at critical temperatures, and in case of fire, the power is cut off immediately. A door alarm ensures the cabinet is never left open.
- Ventilation: A built-in ventilation unit with a connection port safely directs toxic gases out of the building during thermal runaway.
Efficient Charging with 16 Power Outlets
With three fire-resistant shelves plus the base, the BLS1944E offers four separate charging levels. Each level is equipped with a PDU with 4 outlets, providing a total of 16 outlets. Easily charge batteries with the door closed without compromising safety.
Areas of Application
The BLS1944E is ideal for industries with a large number of lithium-ion batteries, such as healthcare, e-mobility (e-bikes), schools, media, drone operations, industry, warehouses, and the public sector.
External Dimensions, H x W x D:
1609 x 690 x 711 mm
Internal Dimensions, H x W x D:
1205 x 510 x 400 mm
Weight:
388 kg
Volume:
245 liters
Max Battery Capacity:
10.0 kWh total (2.5 kWh per shelf)
Interior:
3 fire-resistant shelves, 4 PDUs with a total of 16 outlets.
Color:
White/Light Grey (RAL 9002)
Locking:
Electronic code lock
Certification:
VDMA 24994, certified by ECB·S
Theft Protection:
Burglary-resistant
